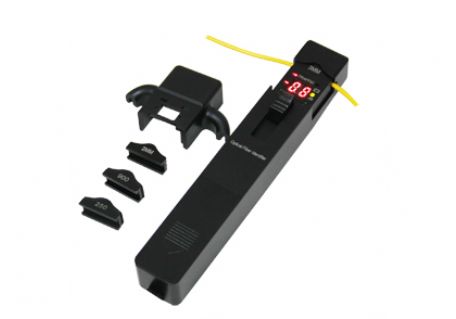

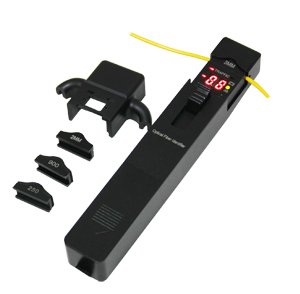

OFI3308 Optical Fiber Identifier
OFI3308 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the
relative core power without any damages to the bended fiber. When the traffice is present,the
intermittently audible tone is activated.
The OFI3308 optical fiber identifier alsor recogize the modnulation like,270Hz,1kHz and 2kHz .
When they are used to detect the frequency, the continuously audible tone is activated.
There are four adapter heads available: ?0.25, ?0.9, ?2.0 and ?3.0. The JW3306A optical fiber
identifier is powered by a 9V alkaline battery .
OFI3308 Optical Fiber Identifier Features
Easy-to-use with “ONE KEY” operation.
Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
Displays the relative core power.
More accurate test with Sunshade.
Easy-to-replace adaptors.
Durable metal housing and quality construction.
Lower power indication.
OFI3308 Optical Fiber Identifier Specifications
|
|
||
|
Type |
OFI3308 |
|
|
Identified Wavelength Range |
800-1700 nm |
|
|
Identified Signal Type |
CW, 270Hz±5%，1kHz±5%，2kHz±5% |
|
|
Detector Type |
?1mmInGaAs 2pcs |
|
|
Adapter Type |
?0.25 (Applicable for Bare Fiber) |
|
|
Signal Direction |
Left & Right LED |
|
|
Singe Direction Test Range(dBm, CW/0.9mm bare fiber)
|
-46~10(1310nm) |
|
|
Signal Power Test Range(dBm, CW/0.9mm bare fiber)
|
-50~+10 |
|
|
Signal Frequency Display (Hz) |
270, 1k, 2k |
|
|
Frequency Test Range(dBm, Average Value)
|
?0.9, ?2.0, ?3.0 |
-30~0 (270Hz,1KHz) |
|
-25~0 (2KHz) |
||
|
?0.25 |
-25~0 (1KHz,2KHz) |
|
|
-20~0 (2KHz) |
||
|
Insertion Loss(dB, Typical Value) |
0.8 (1310nm) |
|
|
2.5 (1550nm) |
||
|
Alkaline Battry(V) |
9 |
|
|
Operating Temperature(℃) |
-10－+60 |
|
|
Storage Temperature(℃) |
-25－+70 |
|
|
Dimension (mm) |
196X30.5X27 |
|
|
Weight (g) |
200 |
|
OFI3308 Optical Fiber Identifier Standard Packages
|
|
|
|
MODEL |
INCLUDES |
|
OFI3308 |
OFI3308 Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
